The Ultimate Go-Anywhere Adventure Machine
Framesets (incl. bar, stem and post): $9,490
Complete Bikes start from: $13,990
Available Build Configurations
-
SRAM Red AXS eTap E1 w/ Power Meter
Parlee Carbon Bar
Parlee Carbon Stem
Parlee Carbon Seatpost
Parlee Carbon Sky Ridge Wheels
Vittoria Terrano Dry
-
Shimano Dura Ace R9200 Di2
Parlee Carbon Bar
Parlee Carbon Stem
Parlee Carbon Seatpost
Parlee Carbon Sky Ridge Wheels
Vittoria Terrano Dry
-
SRAM Force AXS Eagle 1x (or 2x)
Parlee Carbon Bar
Parlee Carbon Stem
Parlee Carbon Seatpost
Parlee Carbon Sky Ridge Wheels
Vittoria Terrano Dry -
Shimano Ultegra R8100 Di2
Parlee Carbon Bar
Parlee Carbon Stem
Parlee Carbon Seatpost
Parlee Carbon Sky Ridge Wheels
Vittoria Terrano Dry -
Frameset Module
Frame & Fork
Parlee Carbon Bar
Parlee Carbon Stem

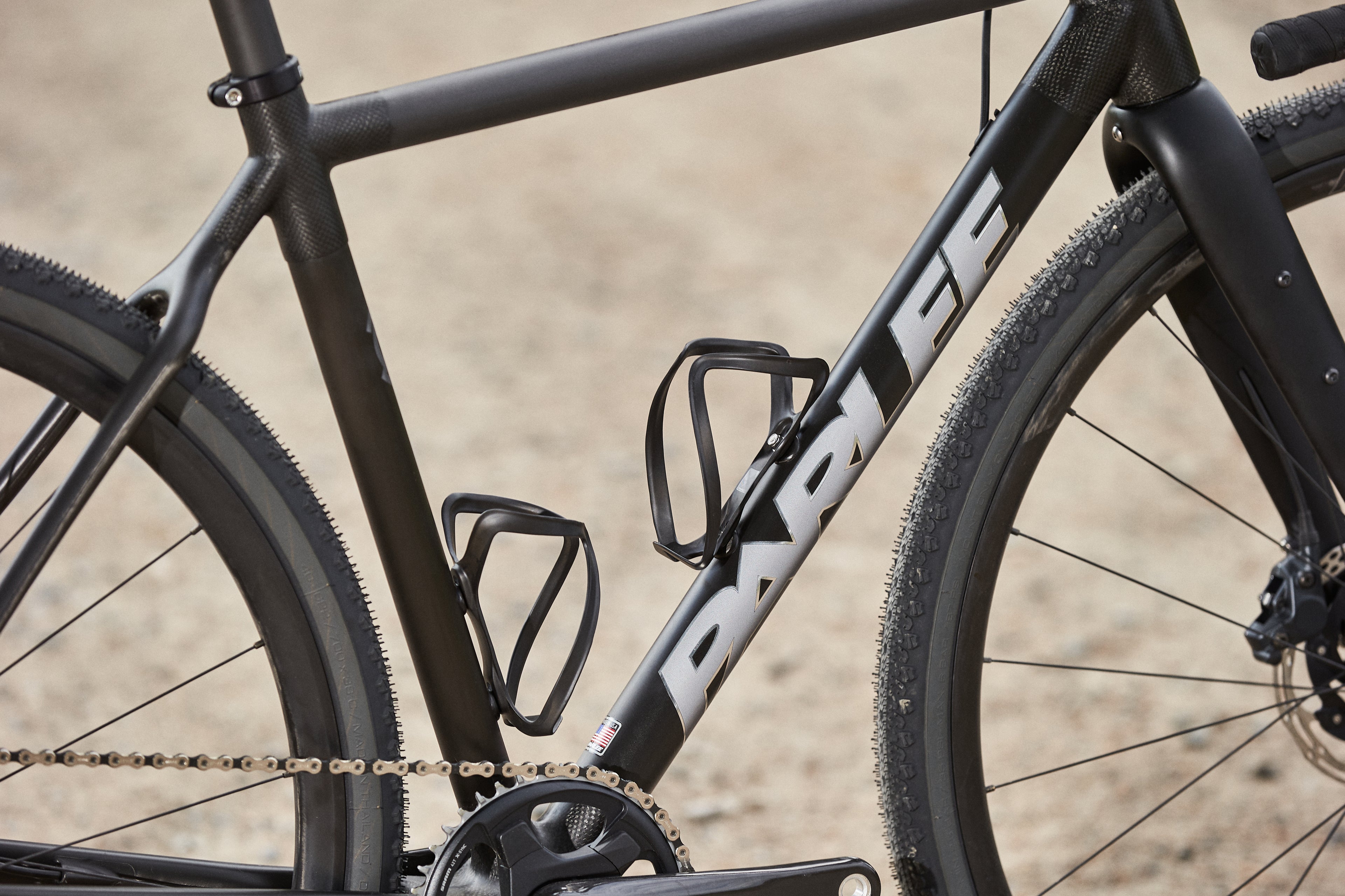

Parlee Carbon Cages

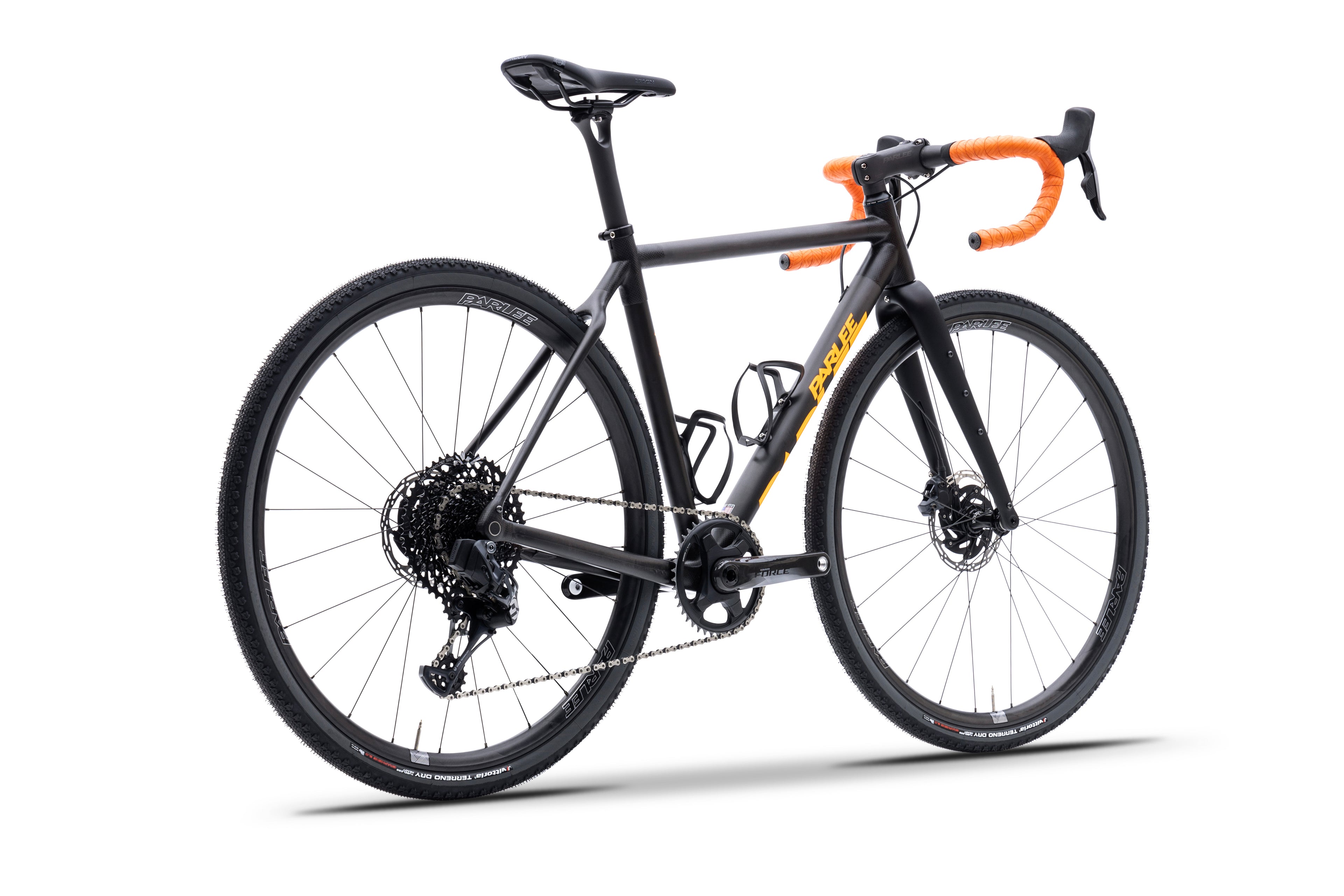

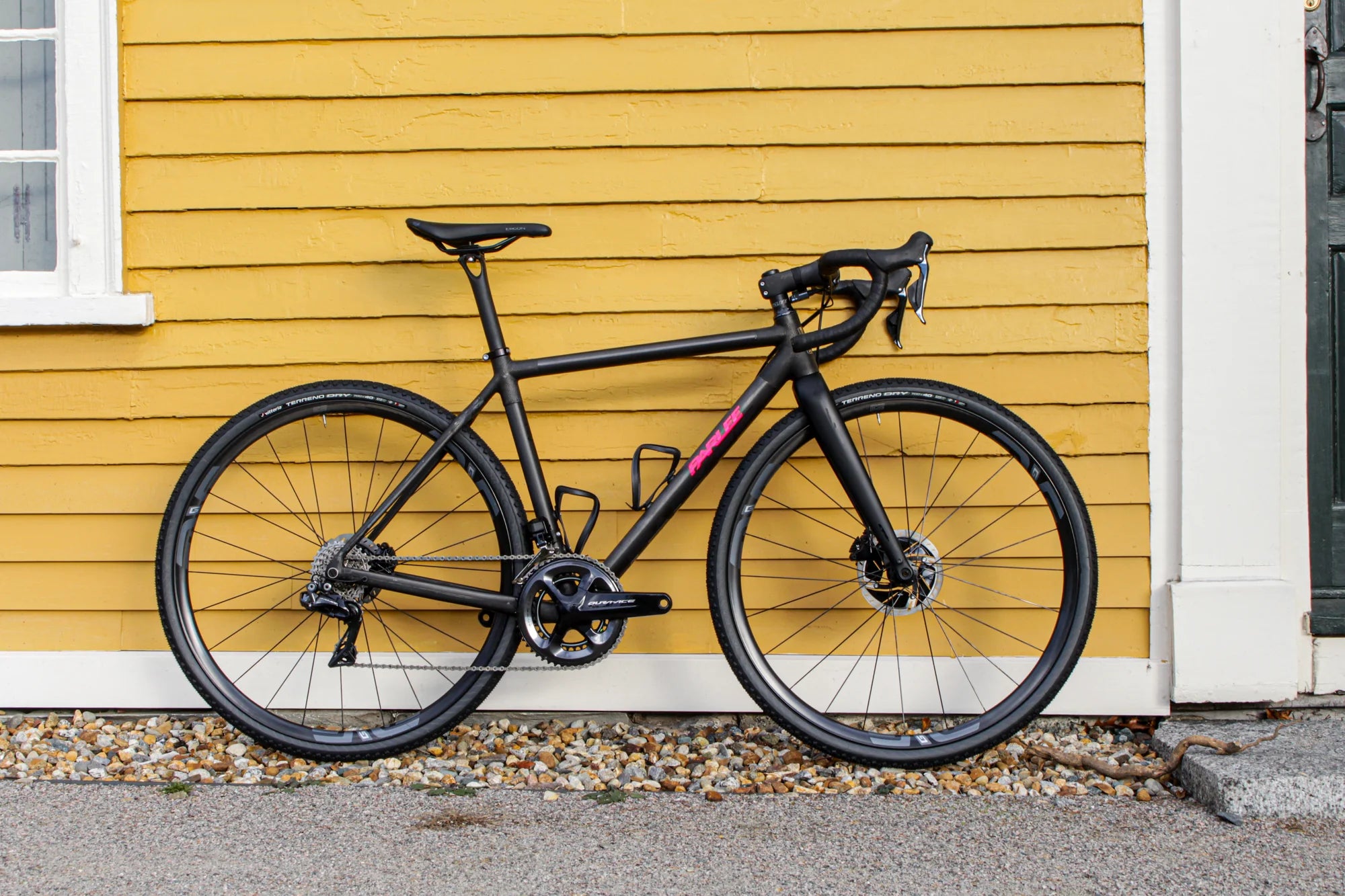

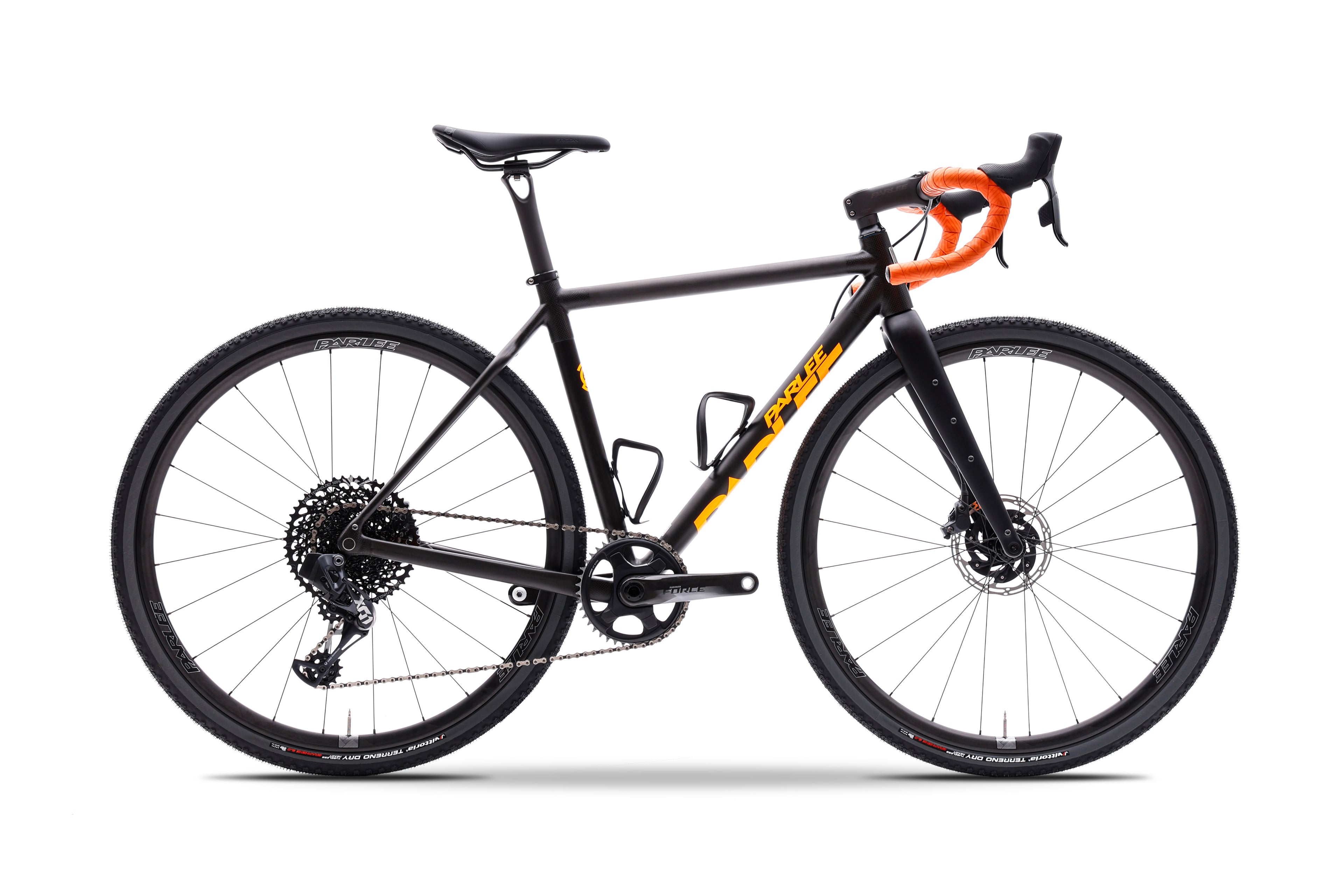

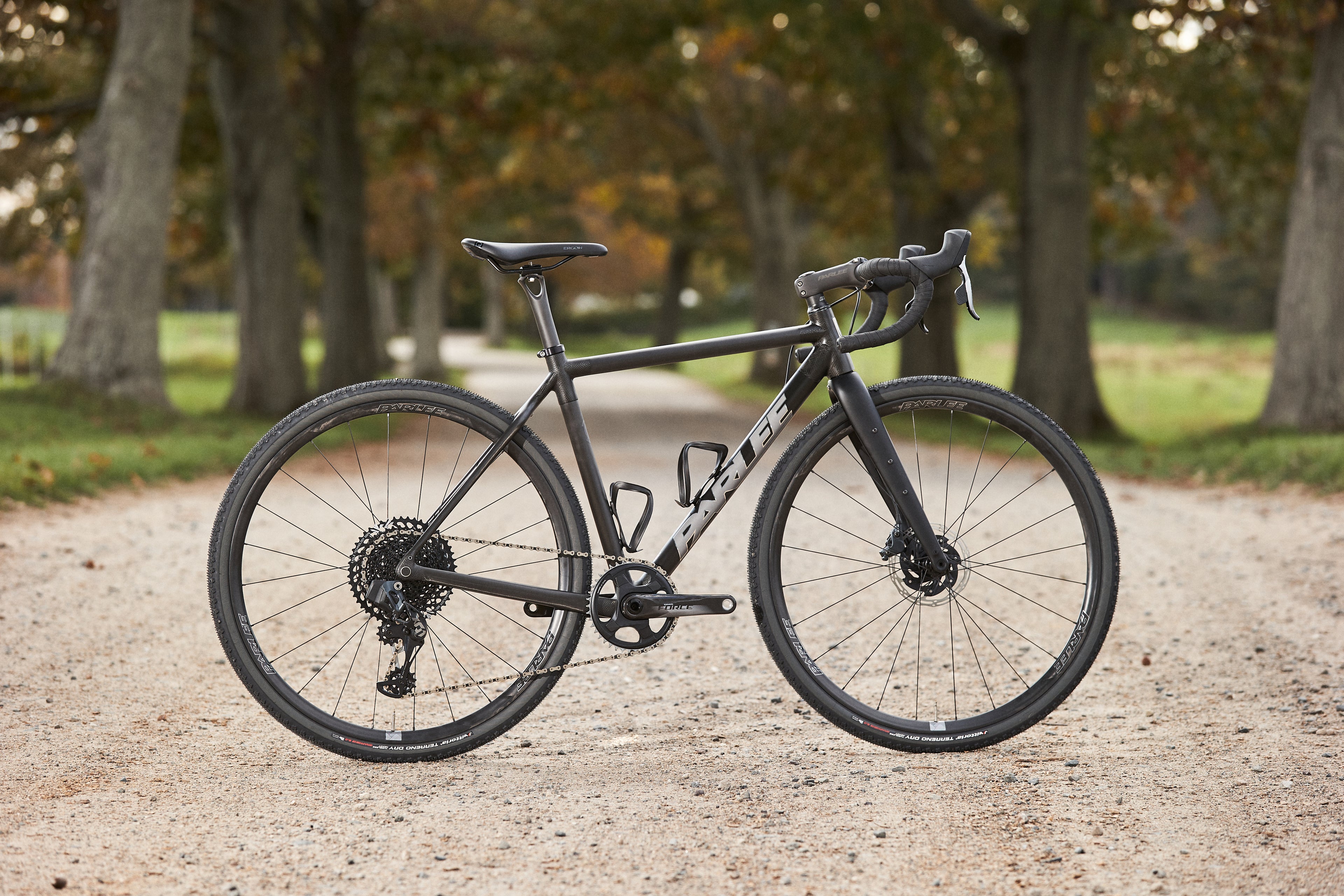

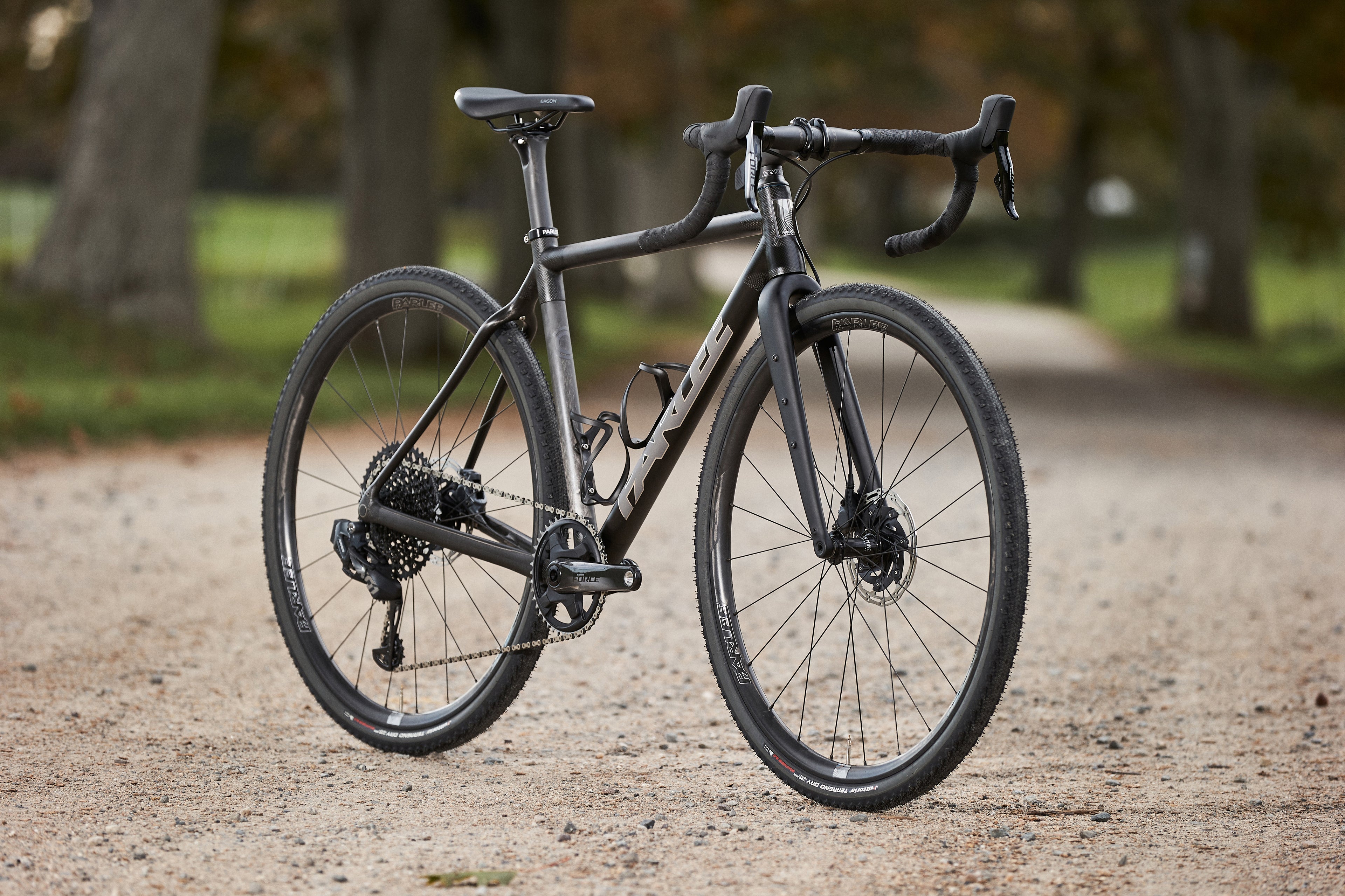

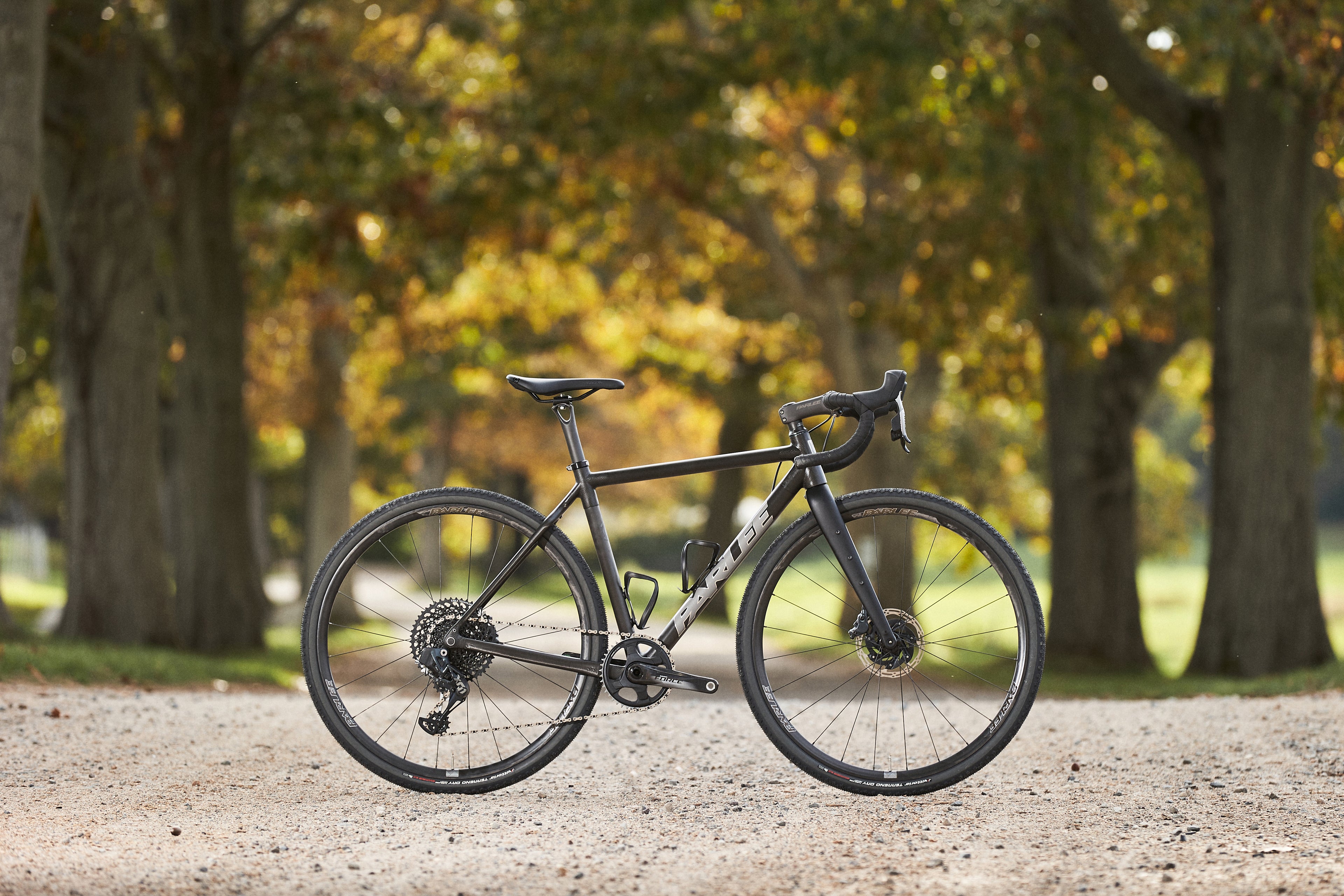

The Z-Zero XD, the ultimate choice for a go-anywhere adventure and gravel bike.
Let the pavement end and the fun begin!

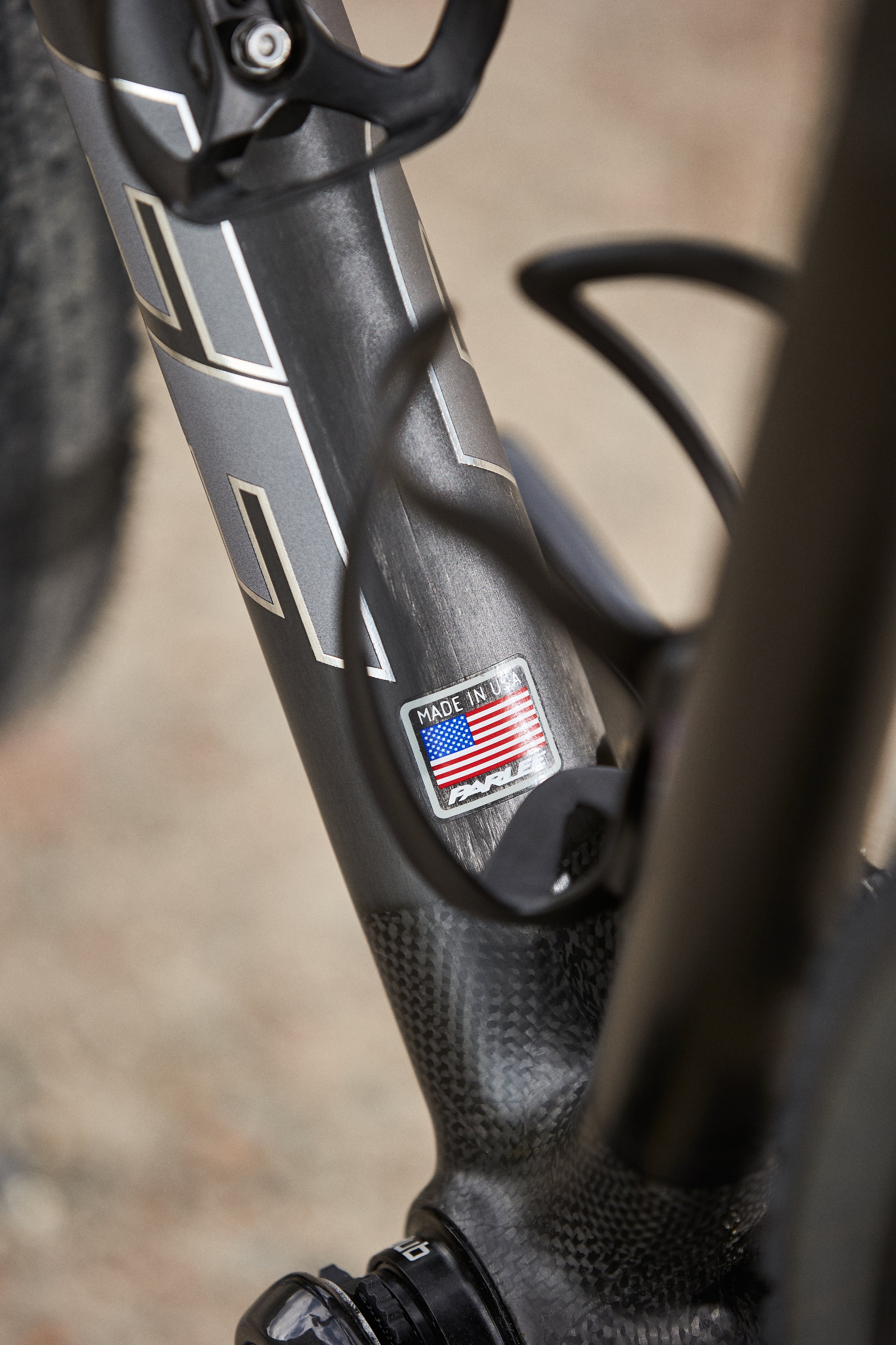

- Handmade one at a time in Beverly, Massachusetts
- Available custom geometry
- One-of-a-kind nude carbon finish standard
- Parlee Paint Lab custom paint optional
- 40mm tire compatible
- Fender mounts standard
Since 2013 we've led the way in gravel and all-road bikes. The Z-Zero XD is the ultimate bike for all-day adventure.
Each one is made to order, by hand by the most experienced carbon team in the country.
Our Z-Zero XD was arguably the first carbon gravel bike, leadnig the way with disc brakes and wide, high volume, low pressure tires. The Z-Zero XD paved the way for what now defines a modern gravel bike. This pioneering design excels in all on and off-road riding disciplines and features all the carbon fiber expertise we’ve acquired over the past two decades.
All Z-Zero XD models include:
Carbon dropouts and bearing races: Our compression molded carbon parts allow us to reduce the metal content in the Z-Zero to less than 20 grams. Eliminating metal correctly in any carbon composite structure translates to lighter weight and better durability.
PARLEE tube joining process: Pioneered on the Z1, our exclusive molding process is the technical benchmark for fusing carbon fiber tubes into a monolithic structure. Our process is neither “lugged” or traditional “tube to tube” construction. The Z-Zero joining process is more precise, more costly, and unmatched in strength, using only carbon fiber to fuse each tube to another in a manner that yields a wholly unified structure with almost zero redundant material.
Shaped, bladder-molded tubing: Our performance-based tube shaping allows for lighter overall tube weights and optimized tuning of the laminate schedule. A variety of tube designs allows us to perfectly tune the ride to each rider’s needs. Produced by hand, by our staff, here in Beverly, MA the Z-Zero tubes are 10-15% lighter on average than typical carbon tubing yet feature better torsional performance and more comfort.

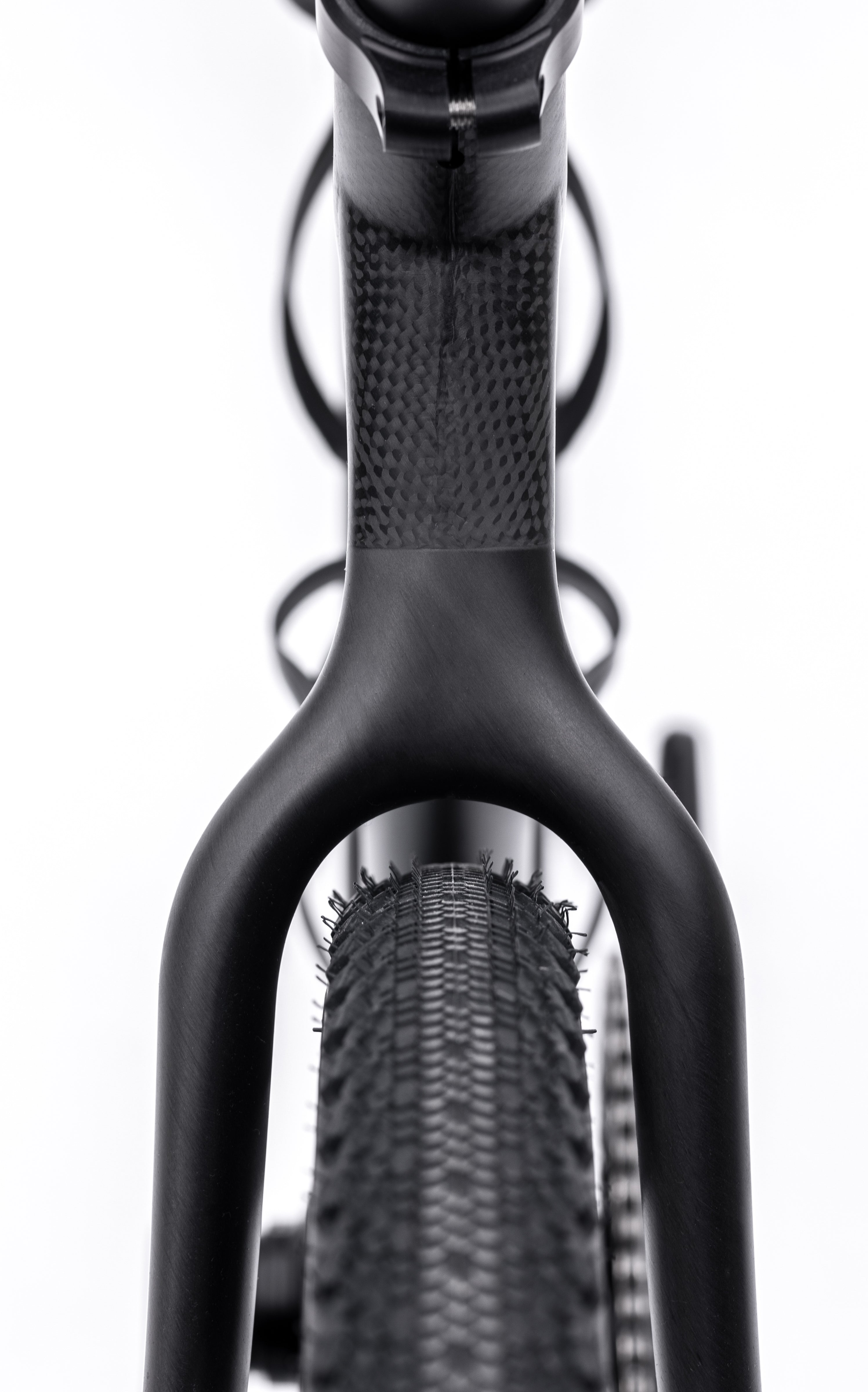

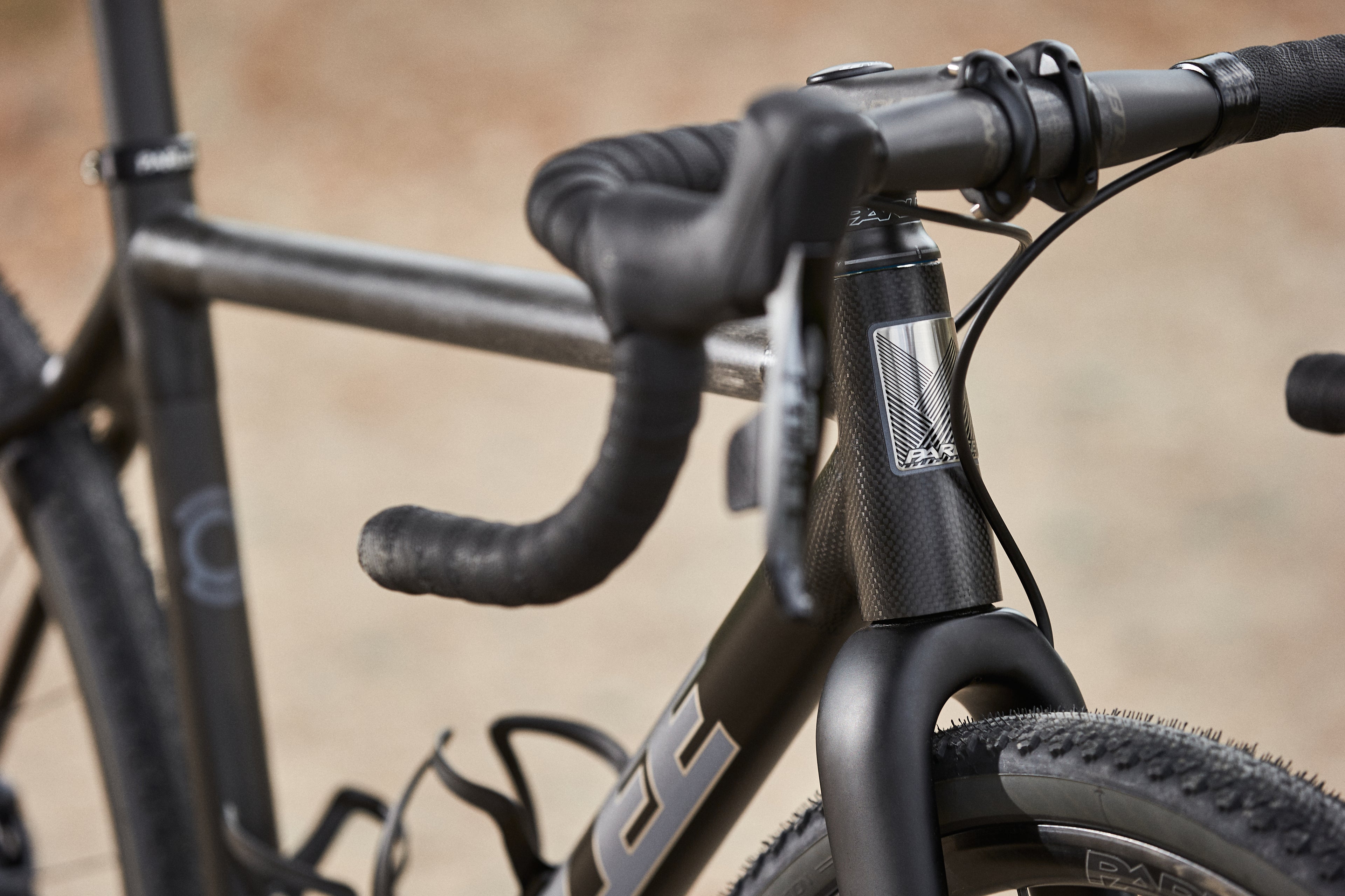

Tapered head and steerer tubes: An innovation derived from the now industry-wide ISO testing protocols; tapered steerer and head tubes are hardly news anymore, however, with our Z-Zero, we pioneered the use of the optimally sized 1.250” (32mm) inch lower standard over the heavier 1.500”(38mm) inch standard. This provides the ideal balance for a road bike. Strength, safety, performance, and lightweight without harshness.
Disc Brake compatibility: The standard for the future, disc brakes for road bikes present a range of new options for brake, wheel, and drive systems. The Z-Zero was designed from inception to be disc brake capable. We use the modern thru-axle standards both front and rear for optimum performance and handling. The Z-Zero RD is compatible with 12mm front and rear thru-axles and the latest flat-mount calipers from Shimano, SRAM, and Campagnolo.

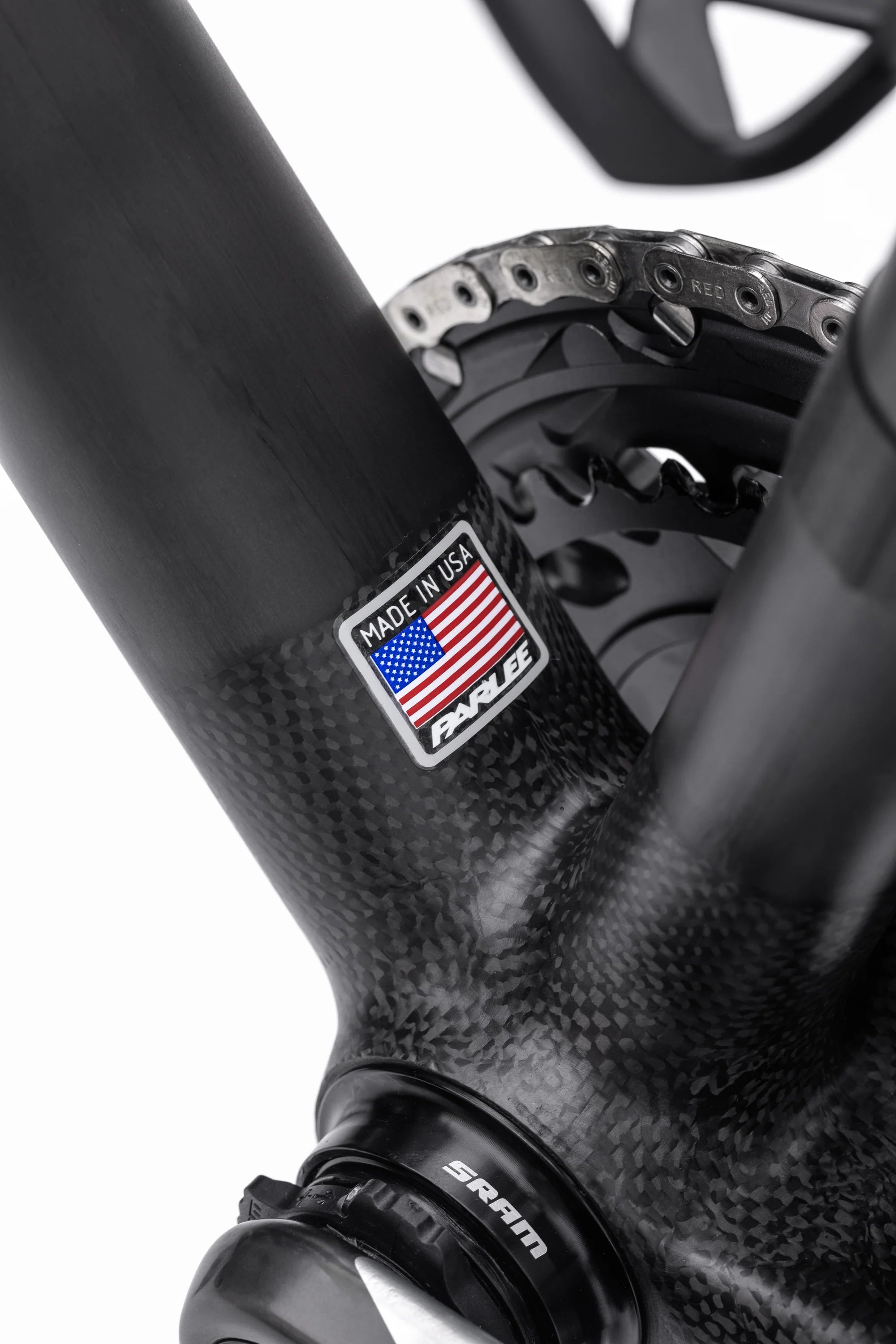

100% Hand-made
Every Parlee Z-Zero is made in our state-of-the-art facility in Beverly, MA.
Interested? Reach out to us below:
Technical Features
Sizes
16 Stock sizes and custom geometry
Design
Compact, multi-surface gravel geometry
TT Slope
7-10 degrees, plus custom options
Tubing
Custom lay up for each size and rider

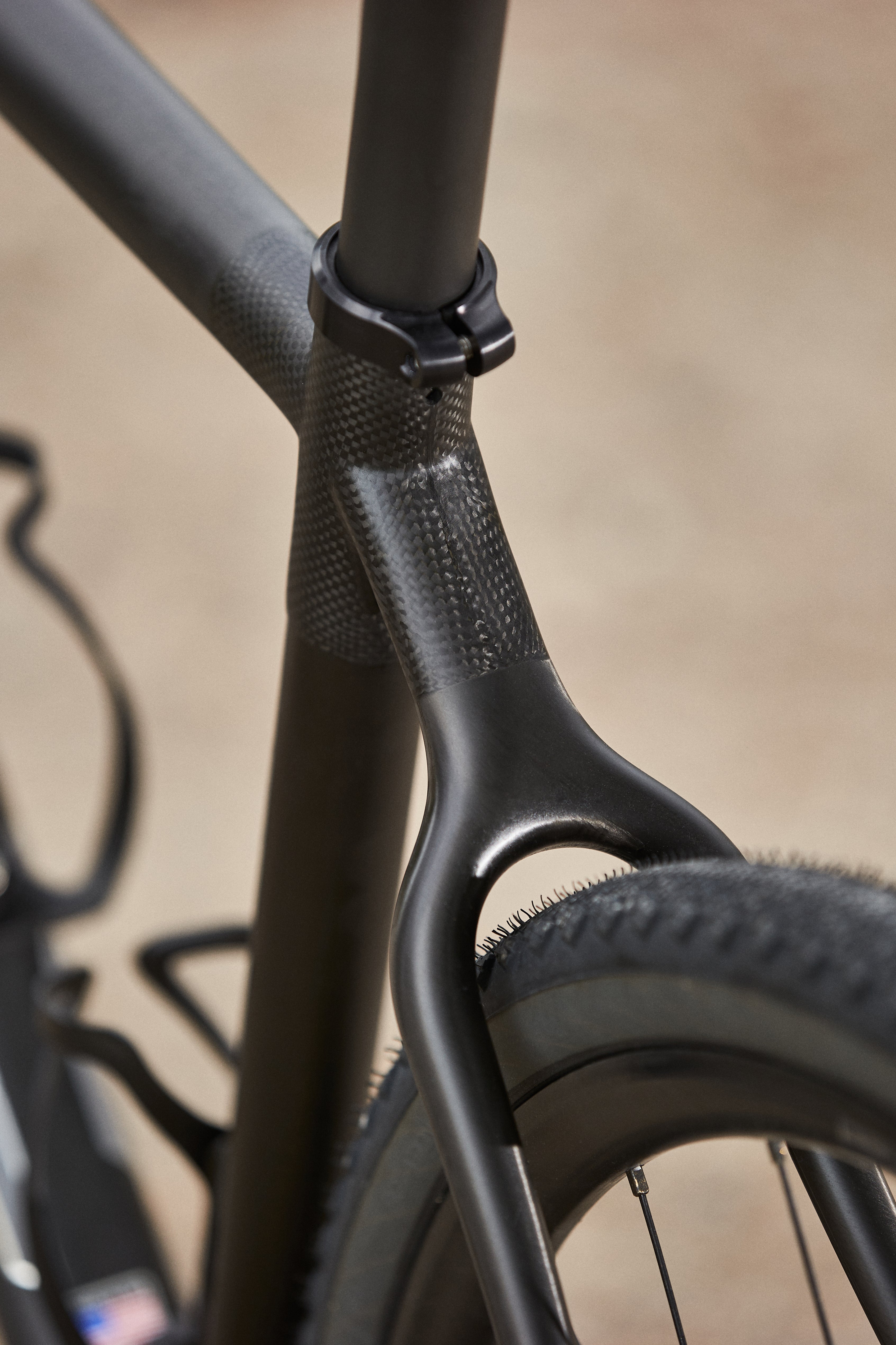

Seat Stays

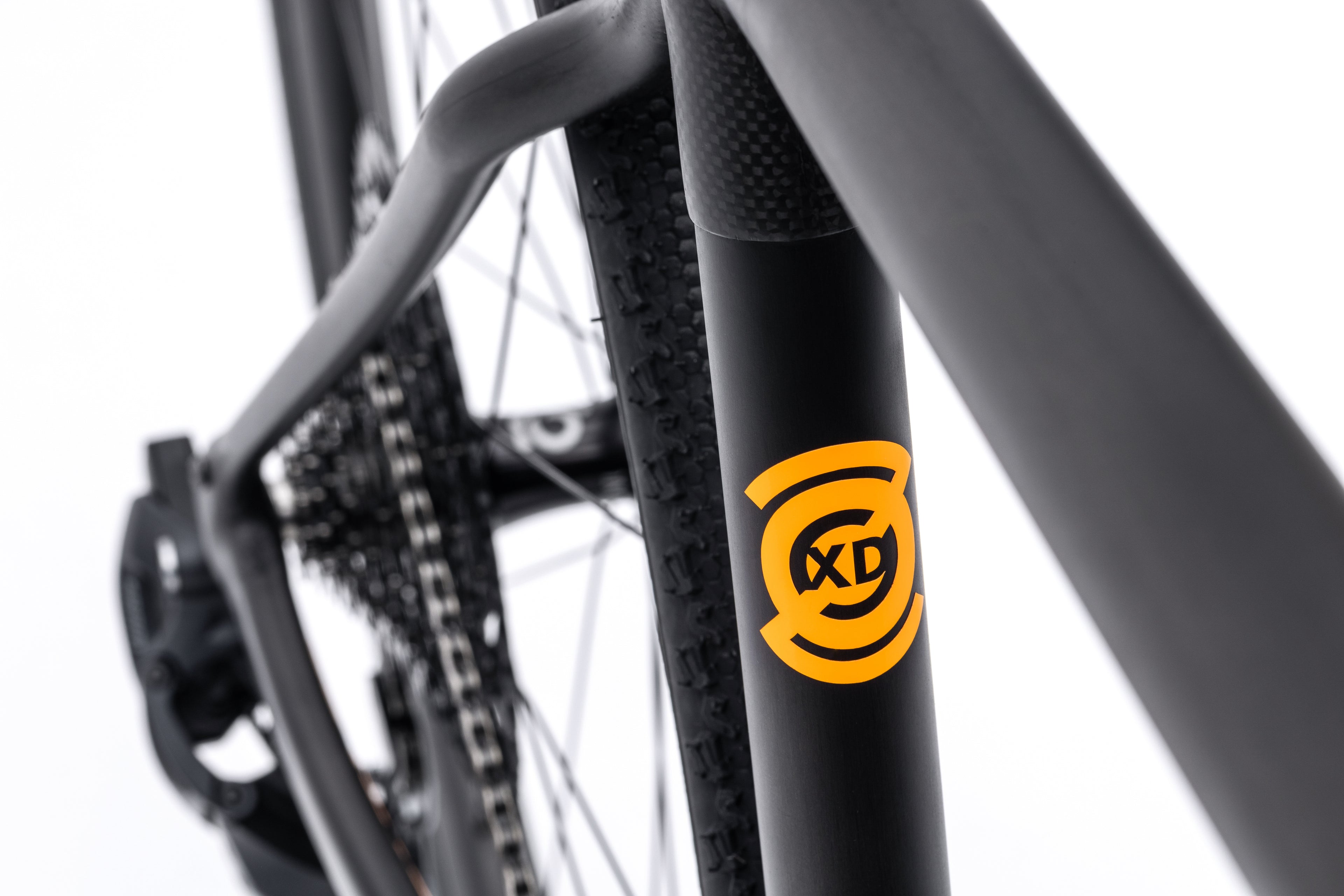

Monostay with hidden fender mount
Tire Clearance
25-45mm (measured) front
25-40mm (measured) rear

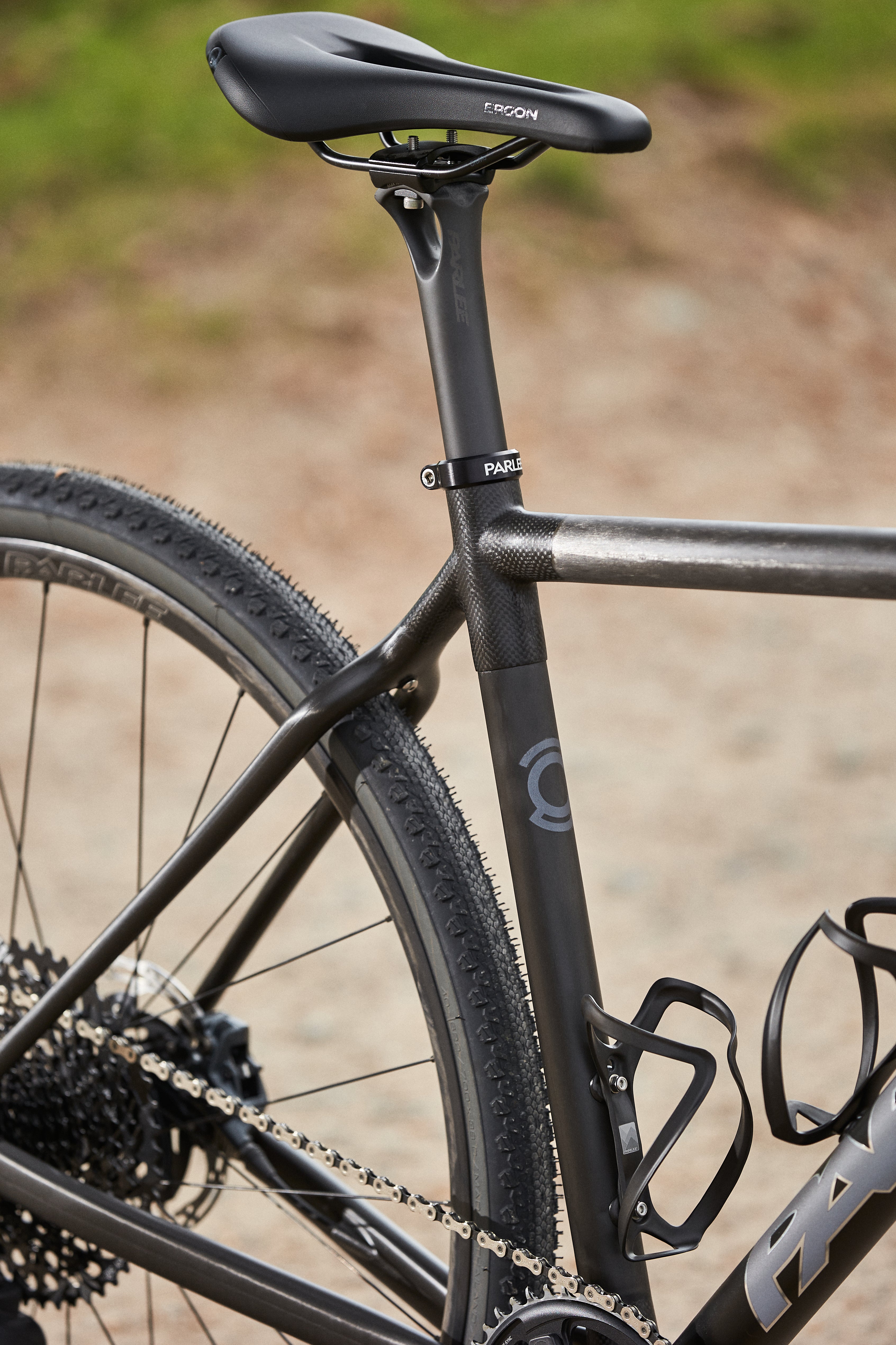

Seatpost
31.6mm
Cabling
Full internal, Di2/EPS/eTap, quick access replaceable clip-in stops. Mechanical, external on request.
Bottom Bracket
Press Fit 30 (68mm x 46mm)
English (BSA)
Drop Outs
Carbon (w/replaceable hanger) - 142x12mm through axle
Brakes
DISC, flat mount front and rear, 140 or 160mm rotors, internally routed
Front Derailleur
Braze-on (removeable for 1x setups)
Frame Weight
975-1175 grams
Fork Specs
PARLEE XD, Multi-surface disc, tapered steerer, integrated crown race, 12mm through axle, 3x utility mounts per side
Fender Mounts
Integrated, hidden, front and rear
Headset
Integrated Cane Creek, IS41 upper, IS47 lower
