ROAD / Custom Series

The Benchmark for Custom Carbon

  • SRAM Red AXS eTap E1 w/ Power Meter

    Parlee Carbon Bar

    Parlee Carbon Stem

    Parlee Carbon Seatpost

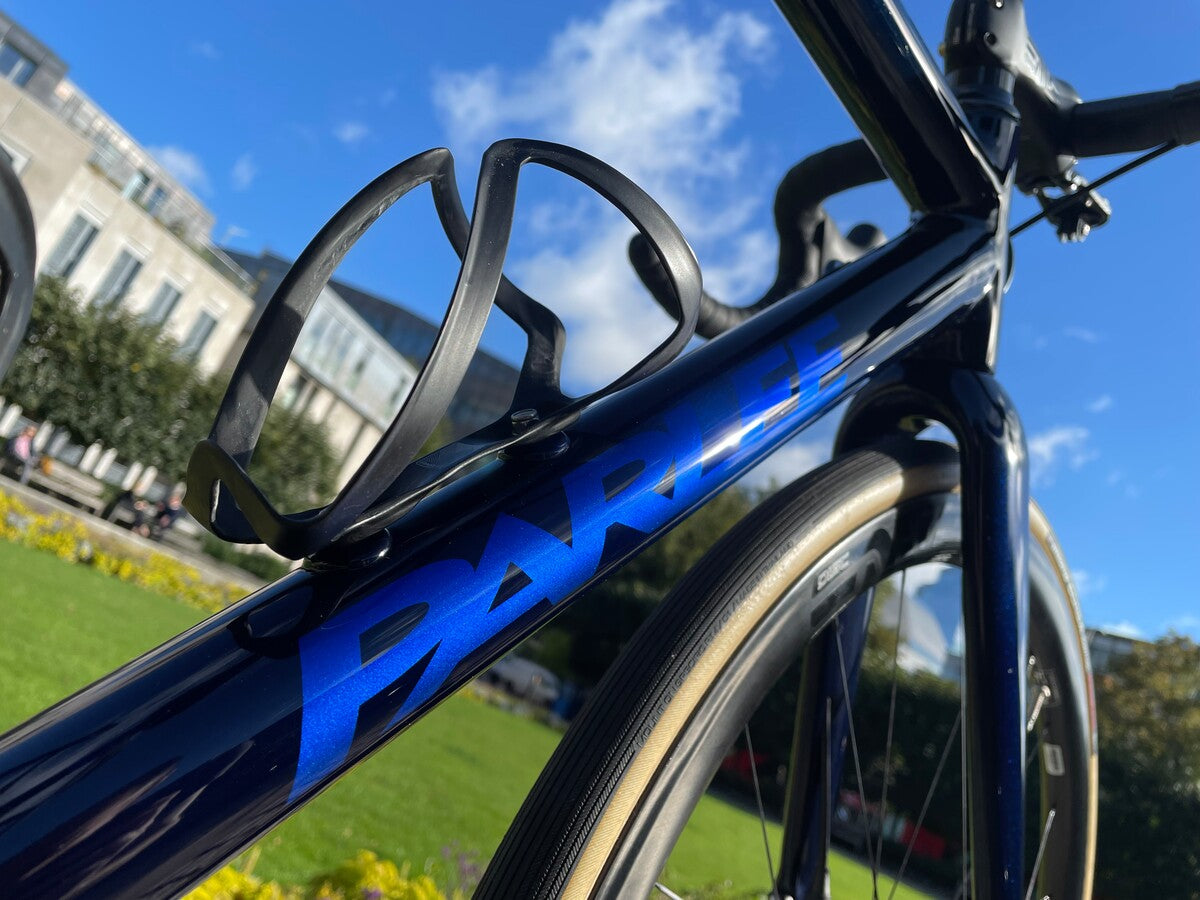

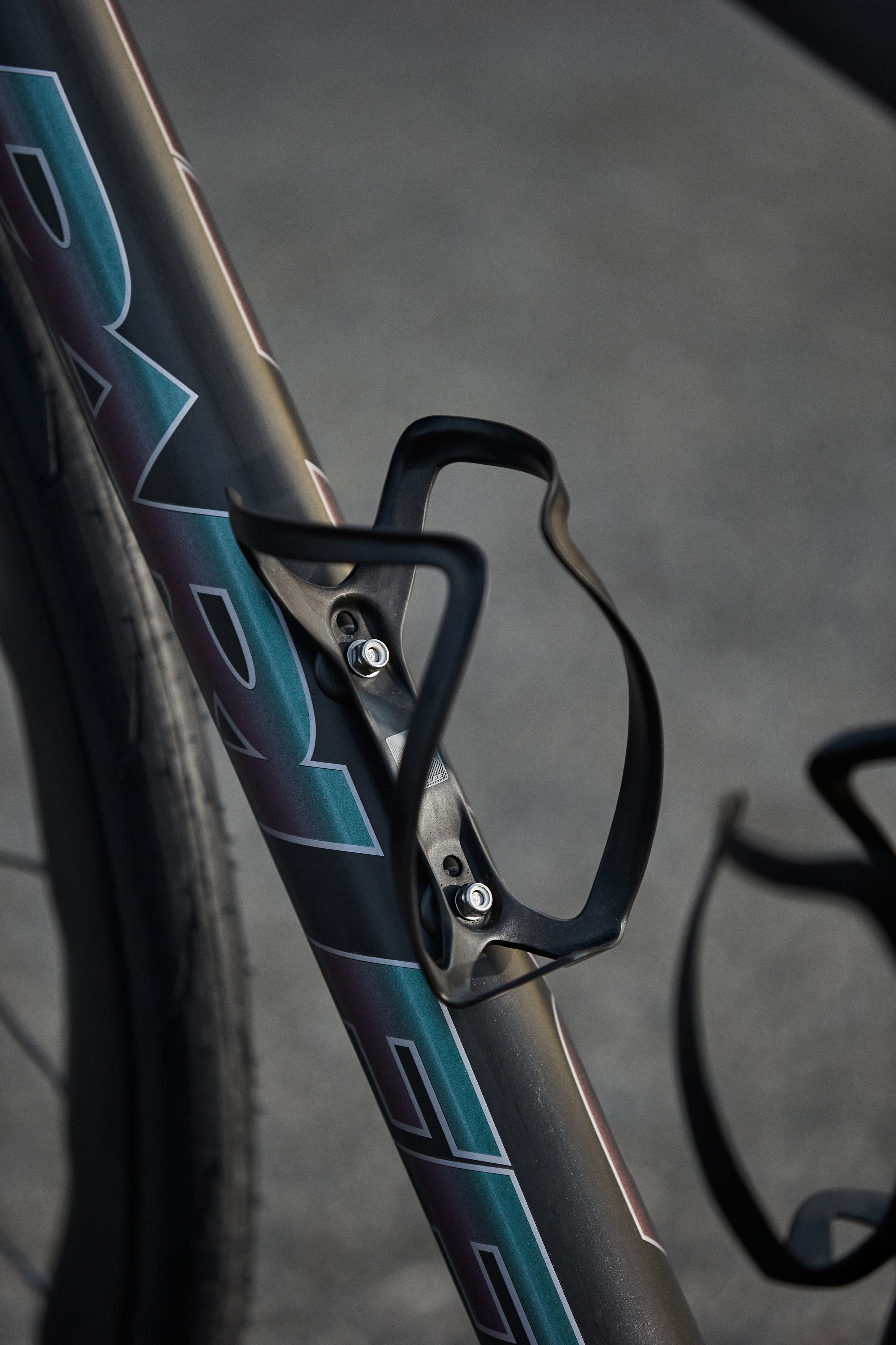

    Parlee Carbon Cages

    Zipp 353 NSW

    Goodyear Vector 4S

  • Shimano Dura Ace R9200 Di2

    Parlee Carbon Bar

    Parlee Carbon Stem

    Parlee Carbon Seatpost

    Parlee Carbon Cages

    Zipp 353 NSW

    Goodyear Vector 4S

  • SRAM Force AXS eTap D2

    Parlee Carbon Bar

    Parlee Carbon Stem

    Parlee Carbon Seatpost

    Parlee Carbon Cages

    Zipp 353 NSW

    Goodyear Vector 4S

  • Shimano Ultegra R8100 Di2

    Parlee Carbon Bar

    Parlee Carbon Stem

    Parlee Carbon Seatpost

    Parlee Carbon Cages

    Zipp 353 NSW

    Goodyear Vector 4S

  • Frameset Module

    Frame & Fork

    Parlee Carbon Bar & Stem

    Parlee Carbon Seatpost

    Parlee Carbon Cages

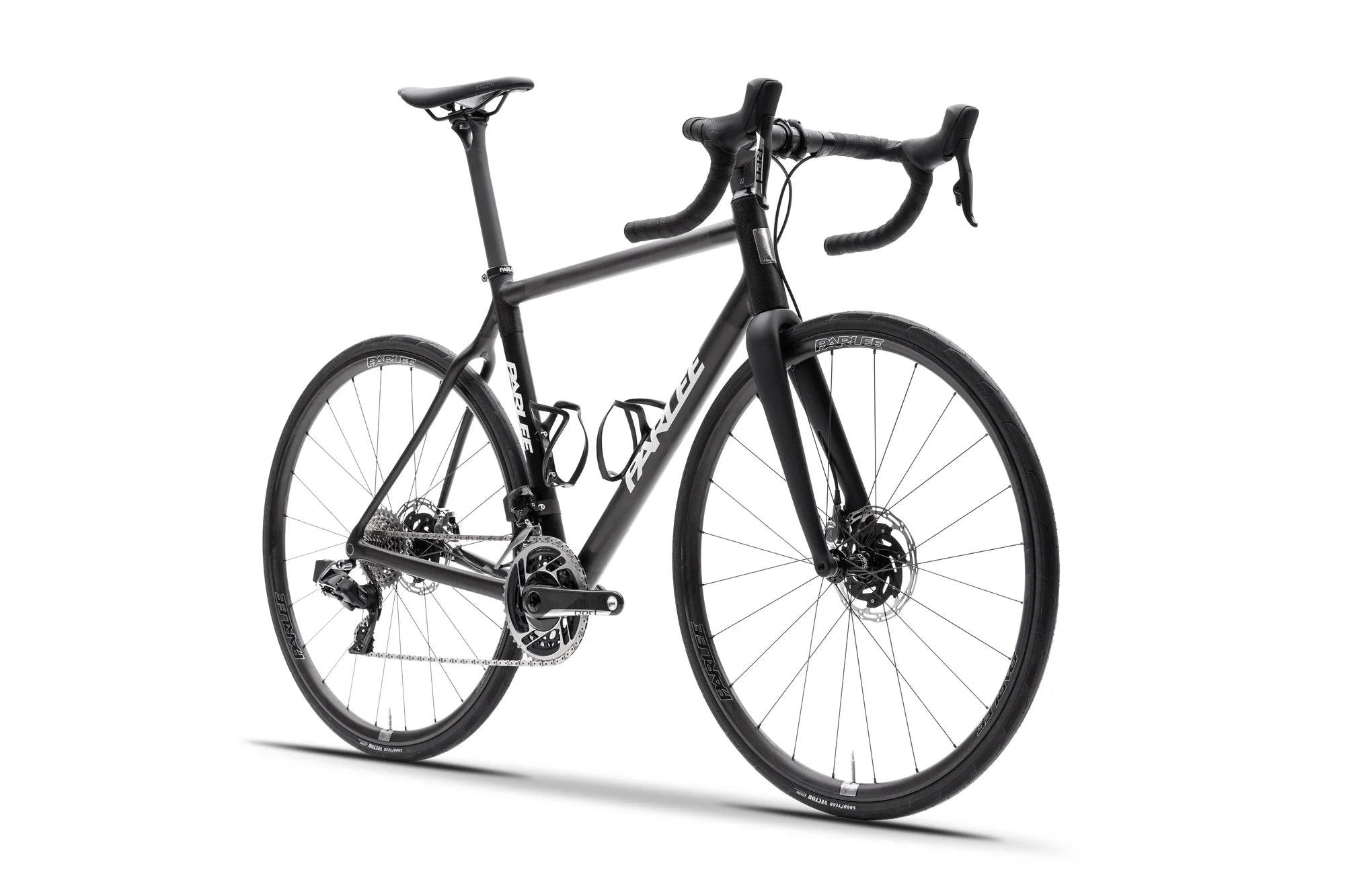

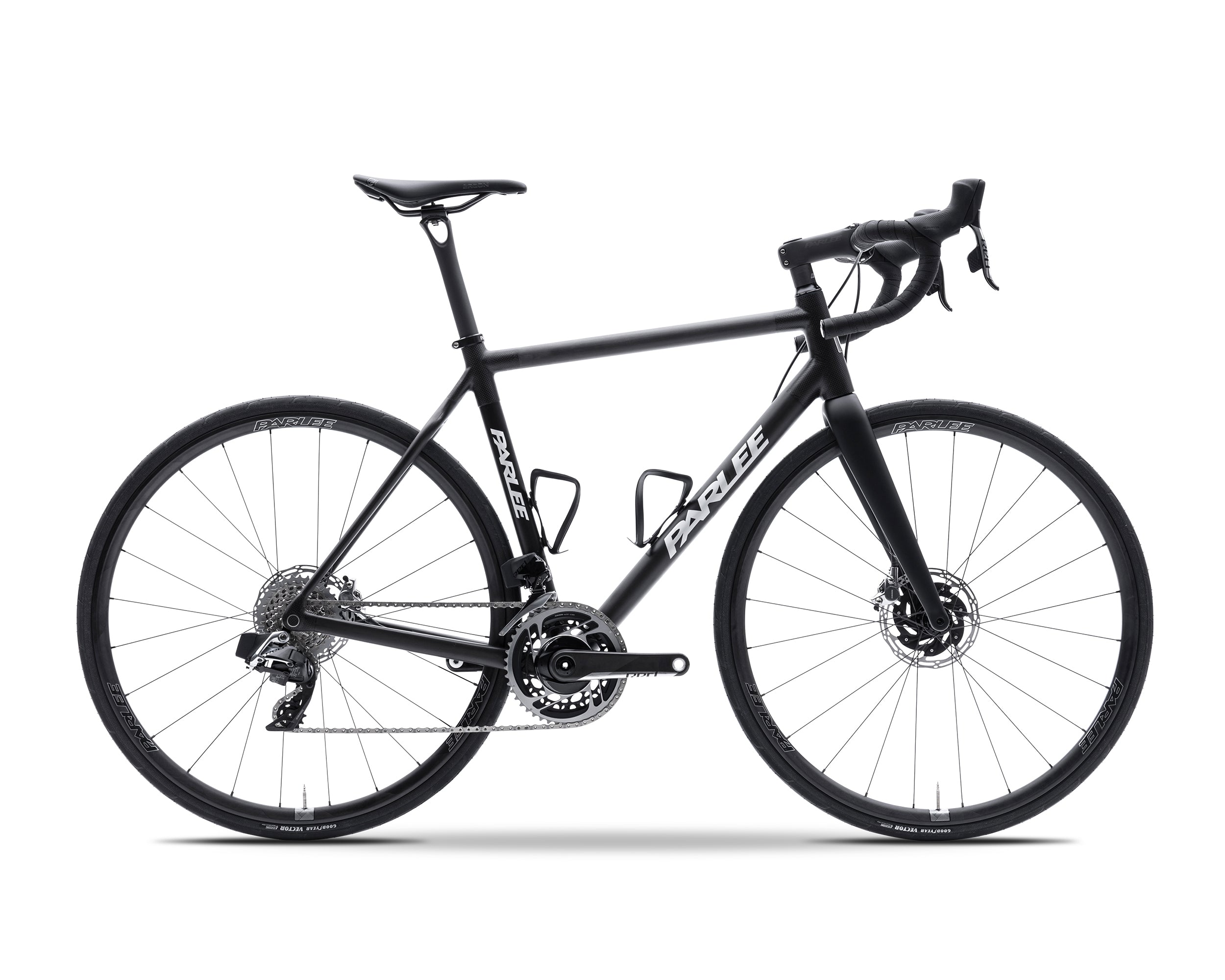

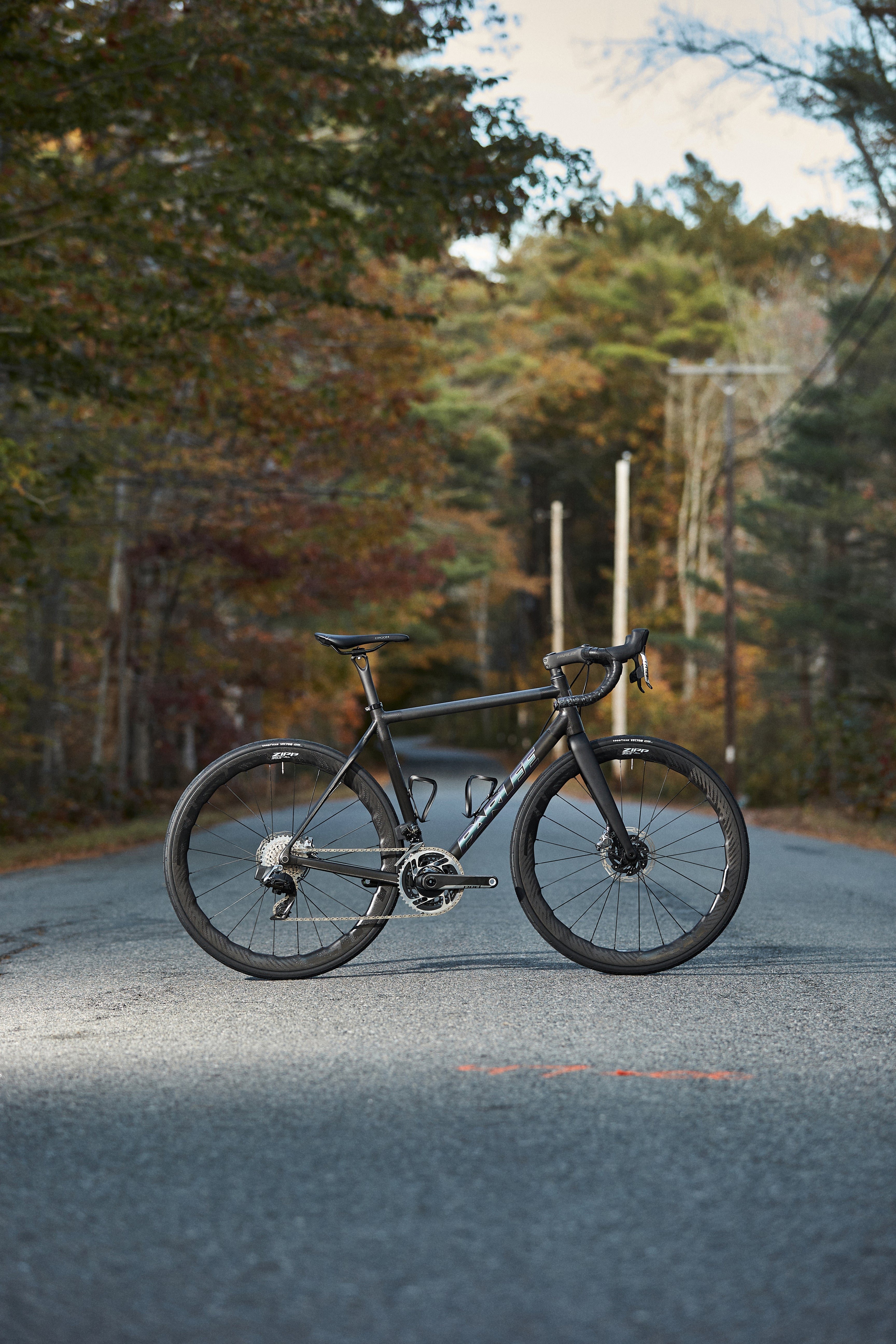

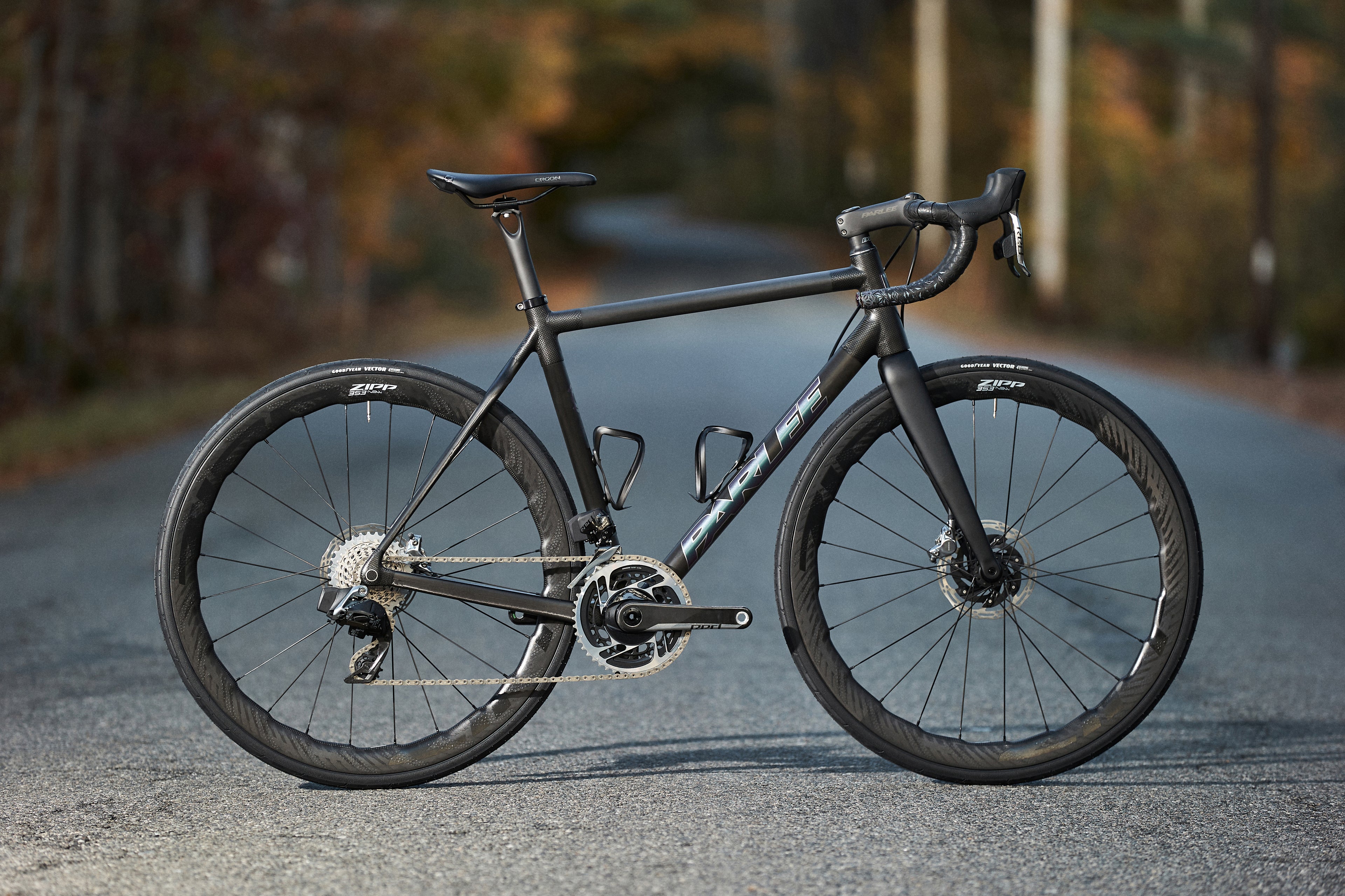

Our Z-Zero RD was the first carbon fiber road bike to embrace both disc brakes and wider, high volume, lower pressure tires, paving the way for what now defines a modern road bike. This pioneering design excels in all road riding disciplines and features all the carbon fiber expertise we’ve acquired over the past two decades.

  • Handmade one at a time in Beverly, Massachusetts
  • Available custom geometry
  • One-of-a-kind nude carbon finish standard
  • Parlee Paint Lab custom paint is also available

From mixed surface exploring to all-day races, sportifs and gran fondos, no other road bike can match the timeless versatility of the Z-Zero RD.

All Z-Zero RD models include:

Carbon dropouts and bearing races: First used on the Z5, our compression molded carbon drops and bearing races (in the head tube and bottom bracket) allow us to reduce the metal content in the Z-Zero to less than 20 grams. Eliminating metal correctly in any carbon composite structure translates to lighter weight and better durability.

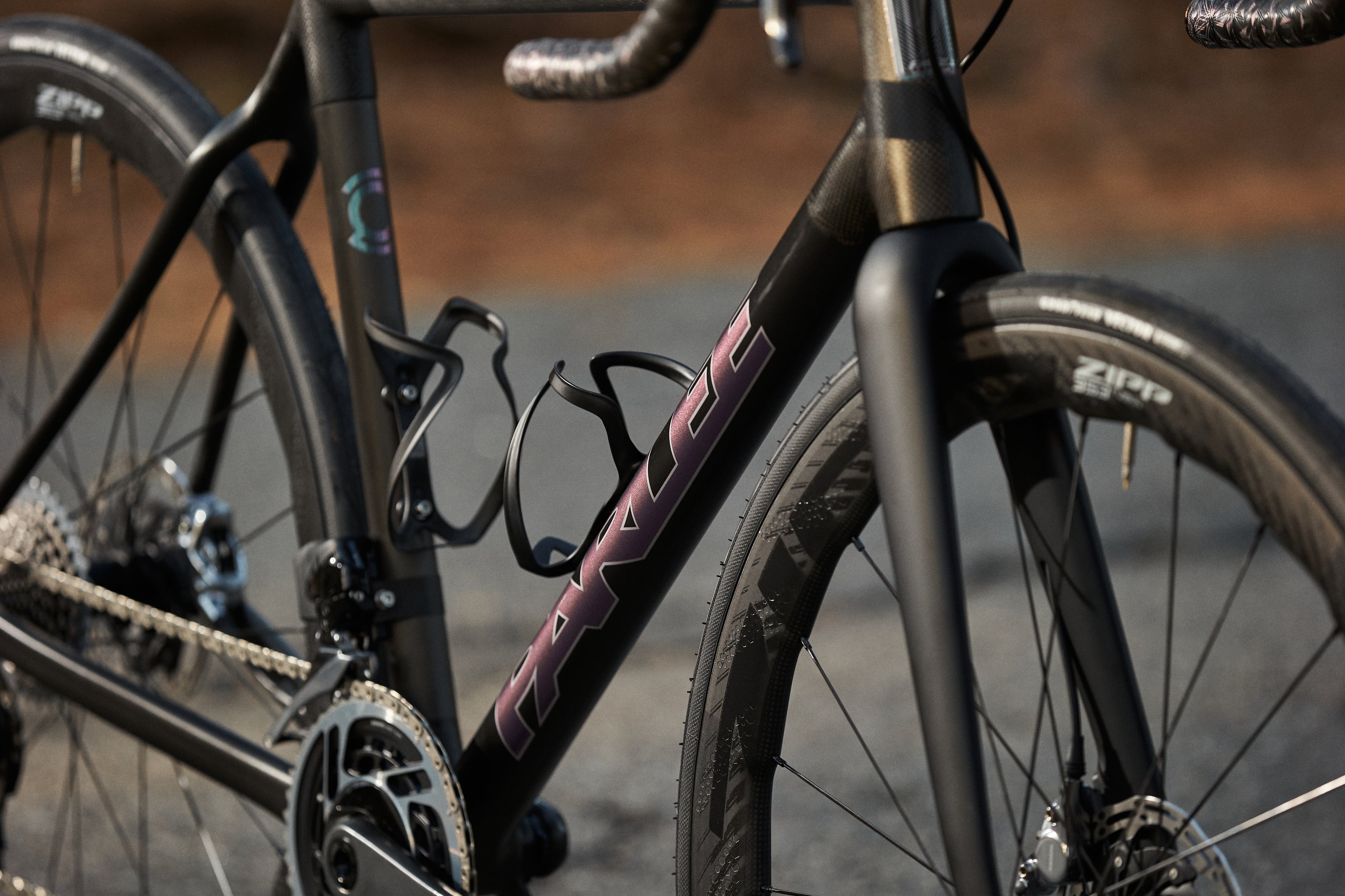

PARLEE tube joining process: Pioneered on the Z1, our exclusive molding process is the technical benchmark for fusing carbon fiber tubes into a monolithic structure. Our process is neither “lugged” or traditional “tube to tube” construction. The Z-Zero joining process is more precise, more costly, and unmatched in strength, using only carbon fiber to fuse each tube to another in a manner that yields a wholly unified structure with almost zero redundant material.

Shaped, bladder-molded tubing: Our performance-based tube shaping allows for lighter overall tube weights and optimized tuning of the laminate schedule. A variety of tube designs allows us to perfectly tune the ride to each rider’s needs. Produced by hand, by our staff, here in Beverly, MA the Z-Zero tubes are 10-15% lighter on average than typical carbon tubing yet feature better torsional performance and more comfort.

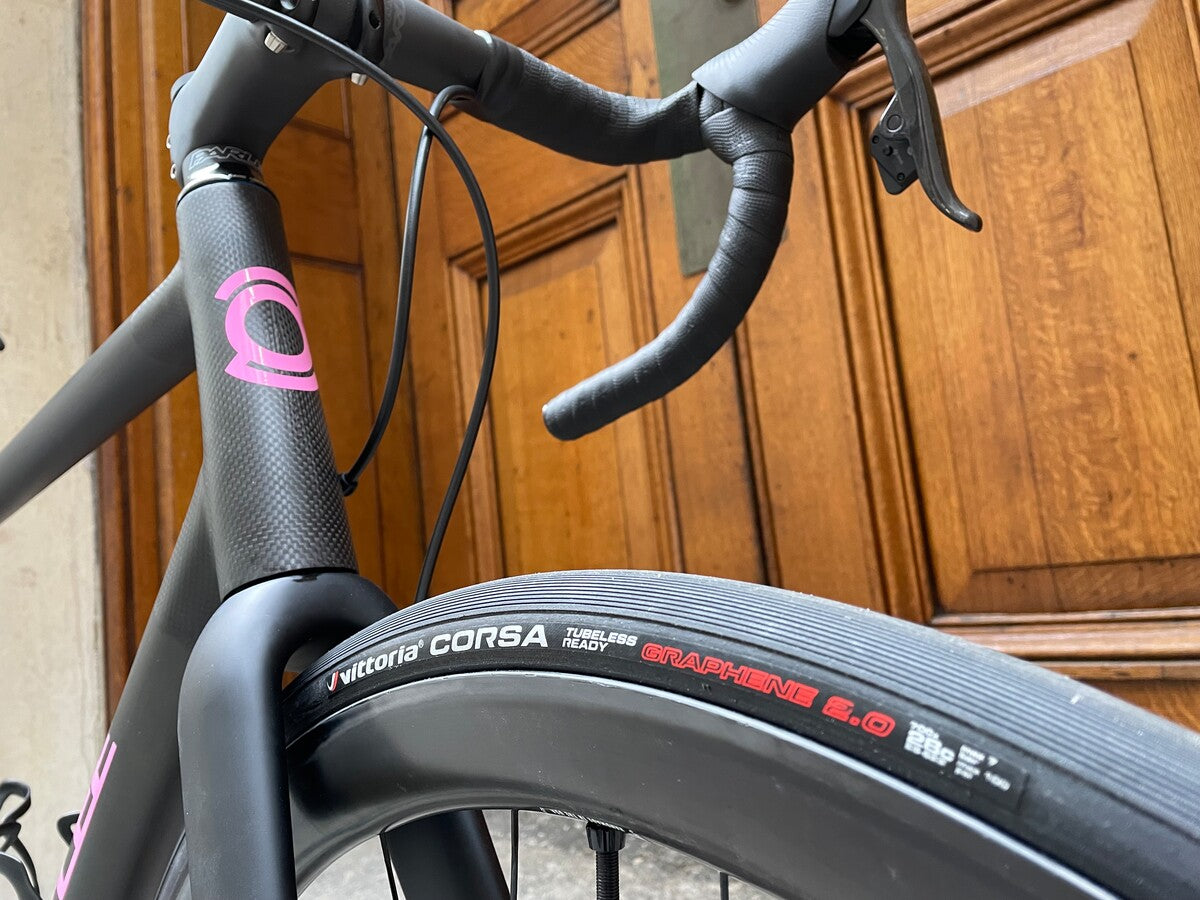

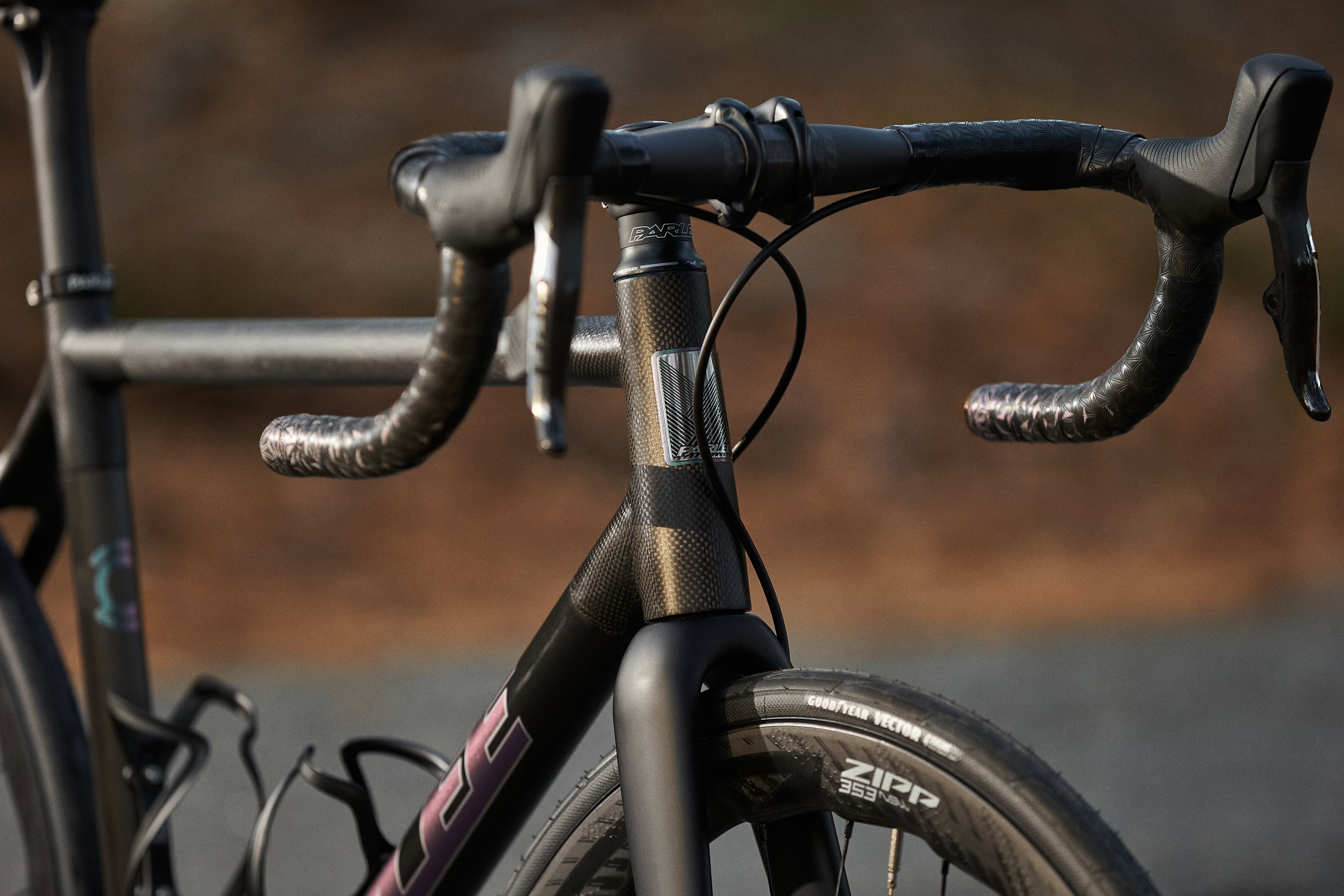

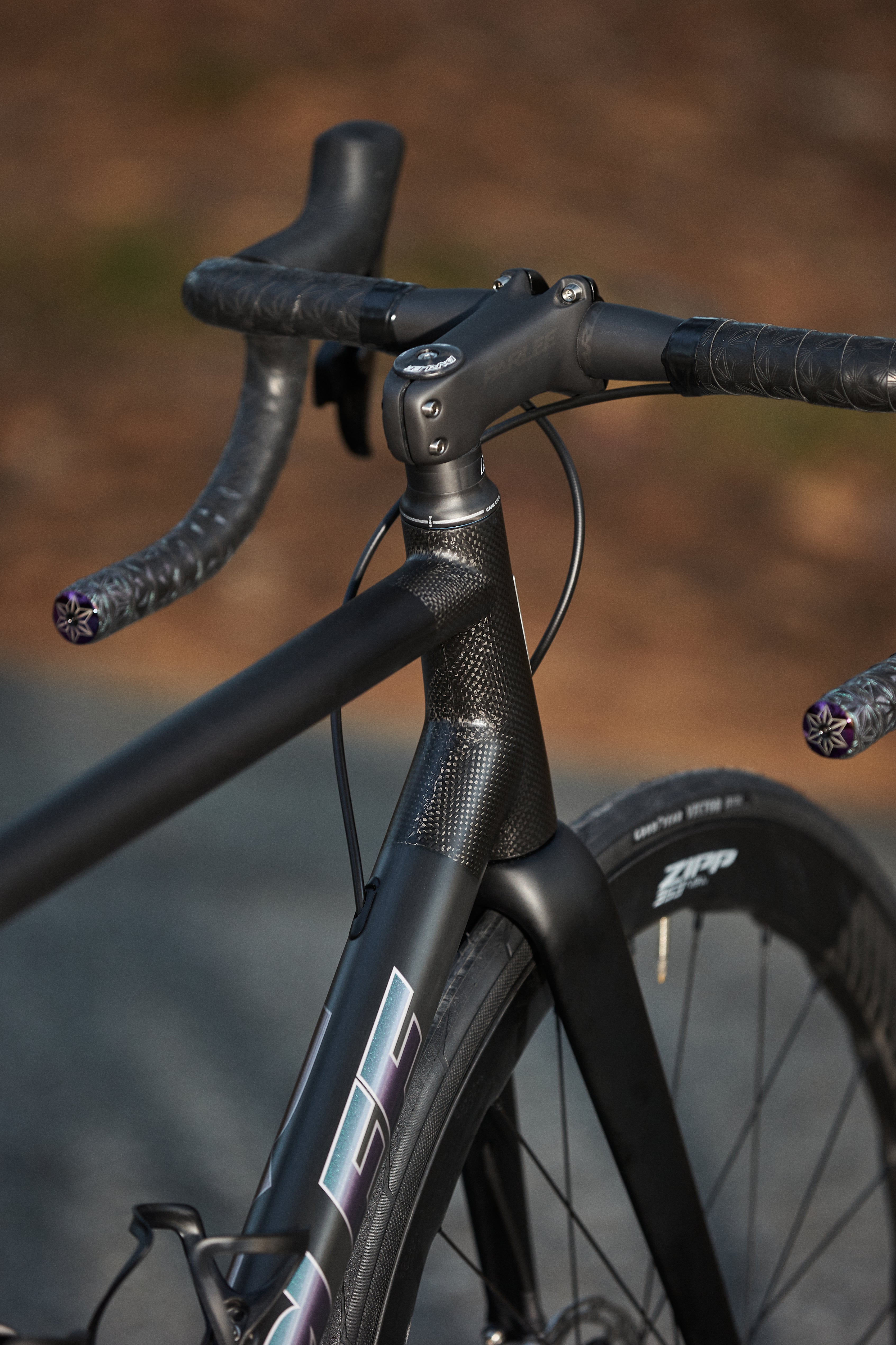

Tapered head and steerer tubes: An innovation derived from the now industry-wide ISO testing protocols; tapered steerer and head tubes are hardly news anymore, however, with our Z-Zero, we pioneered the use of the optimally sized 1.250” (32mm) inch lower standard over the heavier 1.500”(38mm) inch standard.  This provides the ideal balance for a road bike. Strength, safety, performance, and lightweight without harshness.

Disc Brake compatibility: The standard for the future, disc brakes for road bikes present a range of new options for brake, wheel, and drive systems. The Z-Zero was designed from inception to be disc brake capable. We use the modern thru-axle standards both front and rear for optimum performance and handling. The Z-Zero RD is compatible with 12mm front and rear thru-axles and the latest flat-mount calipers from Shimano, SRAM, and Campagnolo.

100% Hand-made

Every Parlee Z-Zero is made in our state-of-the-art facility in Beverly, MA.

Learn More About Parlee Custom

Interested? Locate an authorized dealer near you or reach out to us below:

Click the dropdown menus to see specifications

Technical Features

Sizes

16 stock sizes and custom geometry ensure a perfect fit for all.

Design

Versatile all-round road geometry with a gently sloping top tube.

TT Slope

7-10 degrees, plus custom

Tubing

PARLEE Custom, tuned to each rider and size.

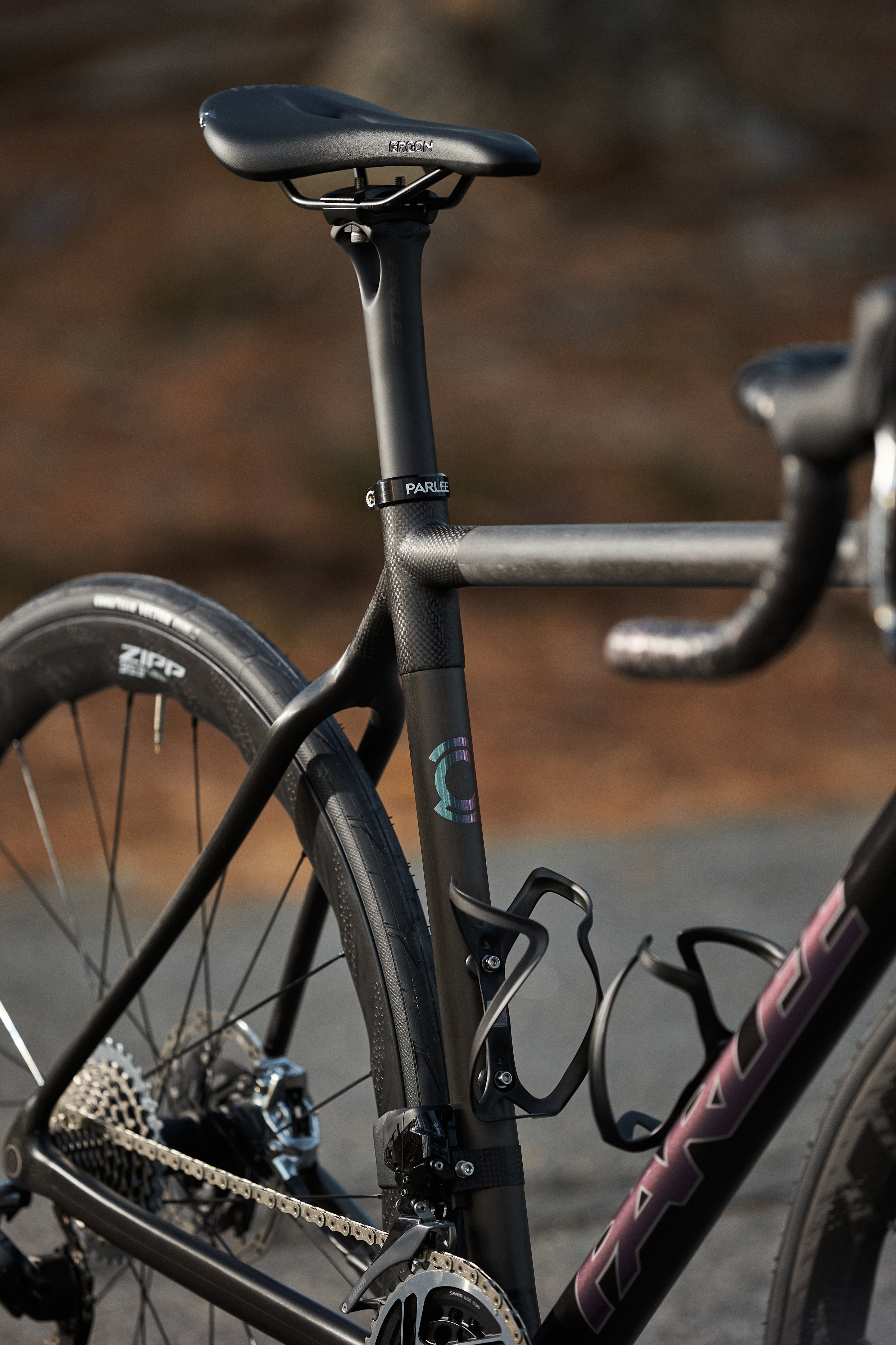

Seat Stays

Custom monostay enables massive tire capacity

Tire Clearance

25-32mm (measured)

Seatpost

31.6mm

Cabling

Internal, Di2/EPS/eTap, quick access replaceable clip-in stops

Bottom Bracket

Press Fit 30 (68mm x 46mm)

Drop Outs

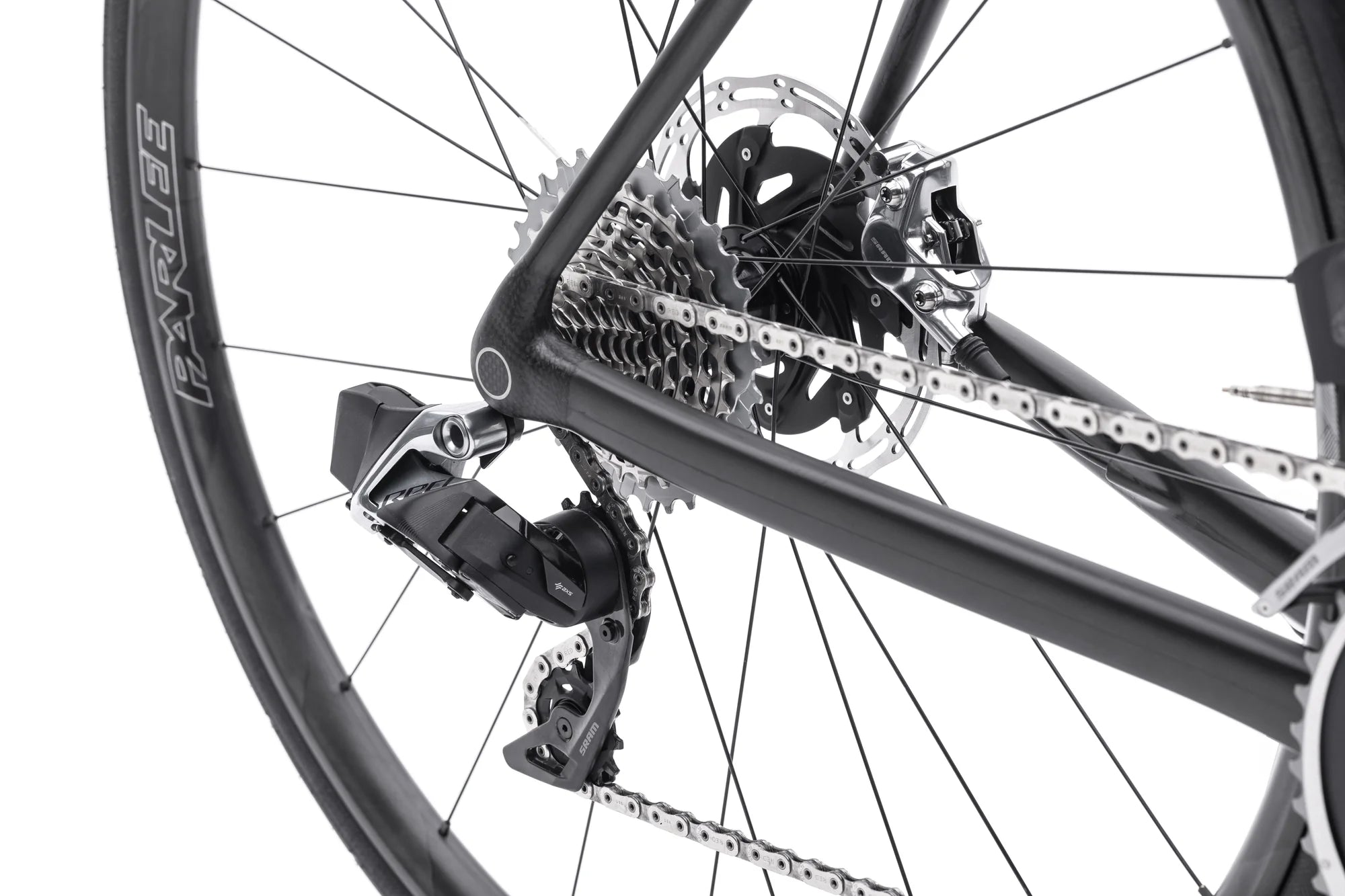

Carbon (w/ replaceable hanger) - 142x12mm through axle

Brakes

DISC, flat mount front and rear, 140 or 160mm rotors, internally routed

Front Derailleur

Braze-on (removeable for 1x setups)

Frame Weight

950-1125 grams

Fork Specs

PARLEE disc, tapered steerer, integrated crown race, 12mm through axle

Headset

Integrated Cane Creek, IS41 upper, IS47 lower
